Manipulator Arm Mechanical Robotic Arm 2 Axis Robotic Arm Manipulator

Package
Ordinary packaging is wood and tray, if exports to Europe, the cases will befumigated (insect disinfection). If the
container has remaining space, we will use PE film , or also can pack according to requirement.

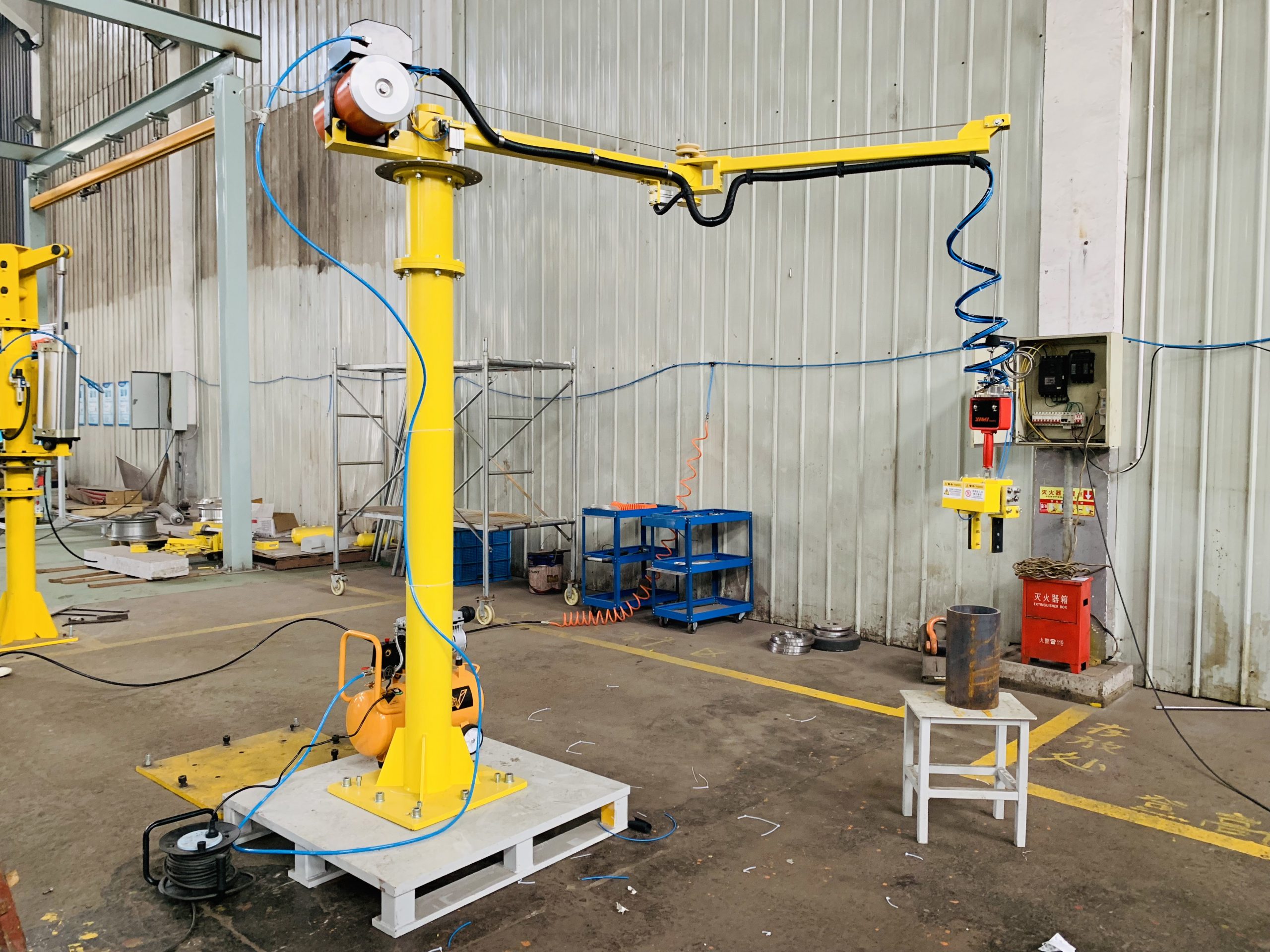

This product is a fixed folding arm type robotic arm, which is fixed to the ground through screws, increasing the stability of the robotic arm. It is used in conjunction with various non-standard fixtures to achieve workpiece handling, stacking, loading and unloading, etc. Under the same height limit, the lifting speed is faster than that of a hard arm robotic arm.
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Other
分类： 标签：

描述

Applicable Industries
Manufacturing Plant, Construction works , Other, Tire Factory
Model
TLJXS-50
TLJXS-100
TLJXS-200
TLJXS-300
Load-Bearing
50KG
100KG
200KG
300KG
Working Radius L1
2500MM
2500MM
2500MM
2500MM
Lifting Height H2
500-2000MM
500-2000MM
500-2000MM
500-2000MM
Air Pressure
0.5-0.8Mpa
0.5-0.8Mpa
0.5-0.8Mpa
0.5-0.8Mpa
Rotation Angle A
330°
330°
330°
330°
Rotation Angle B
300°
300°
300°
300°
Rotation Angle C
360°
360°
360°
360°

Our products are widely used in Glass Industry, Packaging, Paper and Printing Industry, Building Industry, Machinery Manufacturing, Foundry Industry, Chemical and Pharmaceutical Industries, Auto Parts Industry, Automotive Assembly and many other industries. It can handle workpieces and products of various shapes and weights. For example, bags, carton boxes, chemical barrels, oil drums, large rolls of plastic rolls, glass, plates, air conditioners, condensers, compressors, metal castings, molds, sand cores, car tires, front wall, skylights, Dashboard, cylinder head, etc. The fixtures of each manipulator are specially designed and manufactured according to the customer’s specific conditions.
